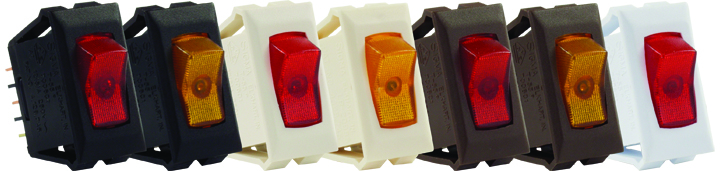

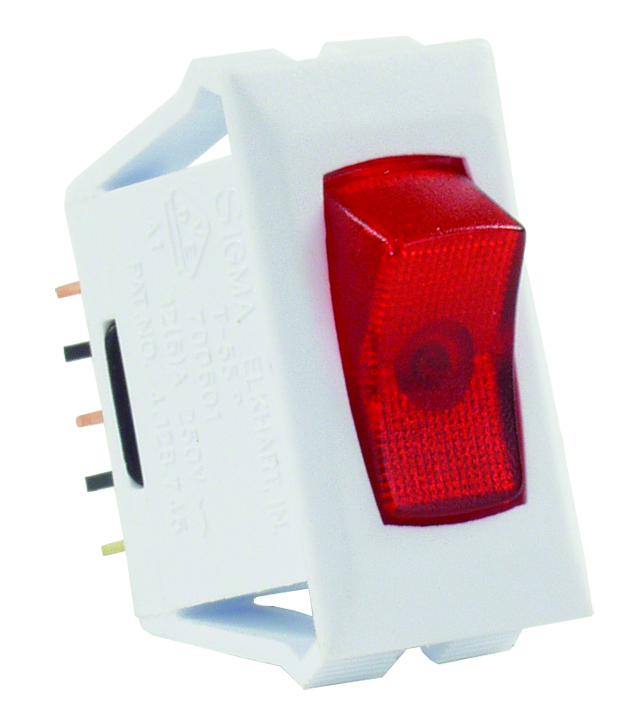

12-Volt, Red/White

Description

This standard switch is commonly used for interior lighting and appliances. It becomes illuminated when in the on position. SPST, 16 AMP @125 VAC, 12 AMP @250 VAC, 3/4 HP 10 AMP @14 VDC. UL/CSA/VDE approved. Cut out Dimension = 1.125 x .550, Switch Dimension = 1.120 x .547.
